Board adapts MIPI CSI cameras to Nvidia Jetson Orin

Microchip has introduced a board that adapts MIPI CSI based cameras to Nvidia’s Holoscan ecosystem – its Jetson AGX Orin and IGX Orin developer kits in particular.

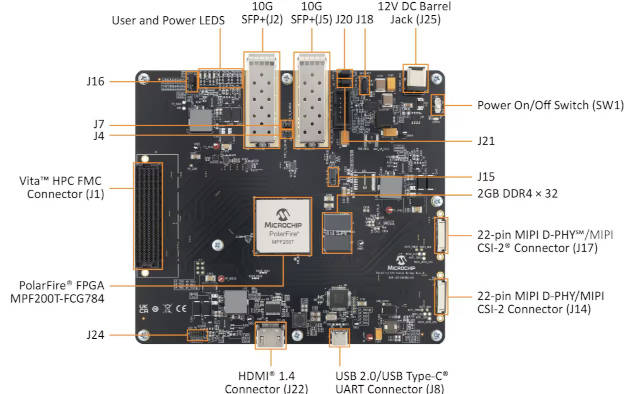

The board, called ‘PolarFire FPGA Ethernet sensor bridge’, has two 10Gbit/s SFP+ Ethernet ports that connect to the Nvidia kit and two MIPI CSI-2 receive ports for cameras.

An FMC slot provides expansion options for protocols including SLVS-EC, CoaXPress, JESD 204B and SDI.

There is also on-board DDR4 for frame buffering and SPI flash for field up-grades.

Nvidia Holoscan helps the development and deployment of AI and high-performance computing applications at the edge for real-time insights,” said Microchip. “The platform includes libraries for data processing, sample AI models for AI inference pipeline development, template applications and core microservices to run streaming and imaging.”

Find the sensor bridge board on this web page

Recommended Articles

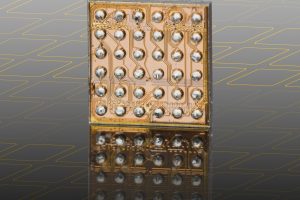

Lattice bridge IC brings mobile display interfaces to industrial apps
