In horticultural lighting, the name of the game is to direct most of the electrical input power into the red and blue parts of the spectrum needed for plants to grow. On top of this are requirements for people to be able to see to work in the environment.

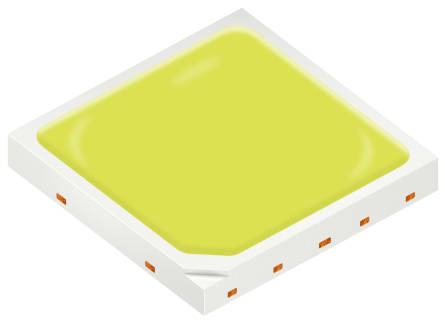

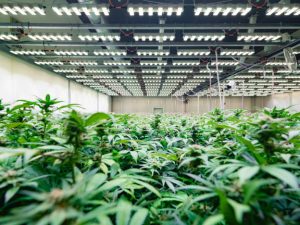

Aimed at indoor farming, the specialist led is the GW Q9LR32.HW, part of the company’s 5 x 5 x 0.7mm Osconiq S 5050 family.
To save power consumption, it’s phosphor has been tuned not to emit much red light (spectrum below), so that it can be paired with AlInGaP or other native red emitting leds.
“Classic white LEDs require considerably more energy than a directly red-emitting LED would for a comparable number of red photons,” according to the company. ” The led also boasts an efficiency of 2.86µmol/J and an optical output of 630mW.” µmol/J is the plant equivalent of lumens/watt for humans.
Both these values are for the M2 bin operating at 180mA and 25°C junction temperature – the devices have two emissive junctions inside: forward drop is ~5.5V at 180mA.
Operating current range is 180 to 1,050mA, and the devices are protected against over-voltages up to 8kV (HBM, Class 3B).
Which leds should they be paired with?
“Possible are in general all red LEDs,” a company spokesman told Electronics Weekly, “but mainly we see the hyper red Oslon Square and Oslon SSL products.”

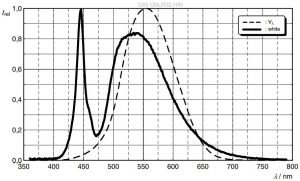

Explaining the spectral emission graph from the data sheet (reproduced above) he said solid line is the power spectrum of the led and the dotted line (V(λ)) is the luminous efficiency function – the average spectrum of human sensitivity.
The GW Q9LR32.HW product page is here
