100mm single board computers get Intel Core 3

Called Up Squared TWL and Up Squared Pro TWL, they are also available with Processor N250 or Processor N150 CPUs.

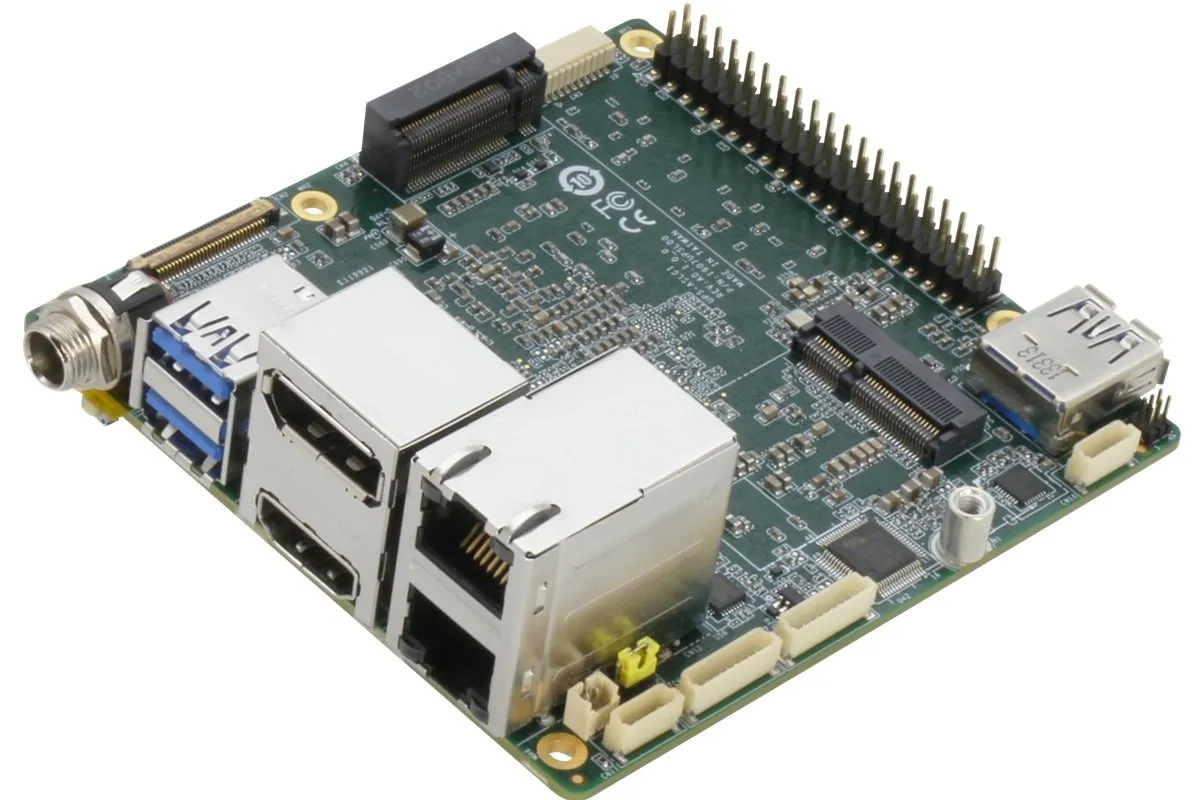

The non-Pro measures 85.6 x 90mm and includes two RS-232/422/485 pin wafers, three USB ports, and a 40-pin HAT connector offering GPIO, SPI, I²C, I²S and UART.

There are soldered LPDDR5 options up to 16Gbyte alongside 128Gbyte of eMMC. More storage can be added though its M.2 2280 M-Key slot, and there is a M.2 2230 E-Key slot for a Wi-Fi module.

Up Squared Pro TWL (left) is 101.6 x 101.6mm, making extra space for IO and hardware aimed at inferencing and machine vision applications.

LPDDR5 is the same and on-board eMMC is down to 64GB, but it gets the M.2 2280 M-Key slot as well as SATA solid-state drive support.

An M.2 3052 B-Key with a Nano SIM slot is added for 5G/LTE comms, and there is a dedicated 61way flexi-connector for MIPI camera support.

Three displays can be connected to HDMI 2.0b, DP 1.2, and DP-1.4a-via-USB-Type-C.

2.5Gbit/s Ethernet is covered by two RJ-45 ports, backed by drivers for the Intel I226-IT controller.

All this requires a 12Vdc input at up to 6A.

Both board can operate over -20 to 70°C and are intended to run Microsoft Windows 11, Ubuntu 22.04 or Yocto 5.1.

Find the Up Squared Pro TWL on this Aaeon web page
