“Both series are Pb-free and can measure temperatures between -40 °C and +155 °C,” according to the company. “At room temperature, their maximum power dissipation is 60mW. Both series are available with different rated resistances between 1kΩ and 100kΩ and different R/T characteristics [see table]. After 10,000h at +70°C, the deviation of the resistance at room temperature R25 is less than 3%.”

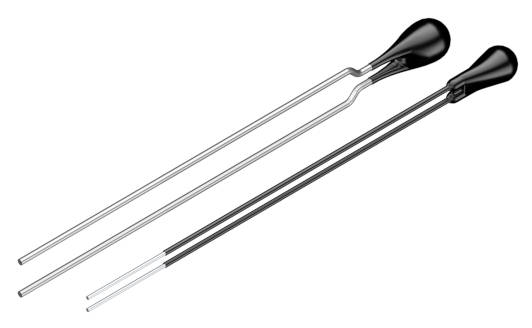

The L862 series (B57862L… part numbers) have epoxy-coated bendable wires made from 0.25mm (30AWG) silver-plated nickel wire. Total length of head and wire is 50mm. Dissipation factor is ~1.4mW/K, thermal time constant is 14s amd heat capacity is ~20mJ/K.
The L871 (B57871L…) series has bare 0.4mm copper-clad steel wire leads pre-formed to 2.5mm spacing.
Dissipation factor is ~3mW/K, thermal time constant is ~9s and heat capacity is ~27mJ/K.
The beads are 6-7mm long and have a maximum diameter of 2.8mm.
Use is foreseen in automotive and industrial applications, for example: battery packs, power banks, energy storage and drones.
| L862 series B57862L… |
R25 [Ω] |
R/T characteristic number |
B25/100 [K] |
|---|---|---|---|
| …0102×000 | 1k | 1023 | 3,930 ±1% |
| …0202×000 | 2k | 1038 | 3,560 ±1% |
| …0502×000 | 5k | 8016 | 3,988 ±1% |
| …0103×000 | 10k | 8016 | 3,988 ±1% |
| …0104×000 | 100k | 2014 | 4,540 ±1% |
| L871 series B57871L… |
R25 [Ω] |
R/T characteristic number |
B25/100 [K] |
|---|---|---|---|
| …0202×000 | 2k | 1038 | 3,560±1% |
| …0502×000 | 5k | 8016 | 3,988 ±1% |
| …0103×001 | 10k | 8016 | 3,988 ±1% |
| …0303×000 | 30k | 8018 | 3,964±1% |
| …0104×000 | 100k | 2014 | 4,540 ±1% |
x = resistance tolerance: F = ±1%, H = ±3%
