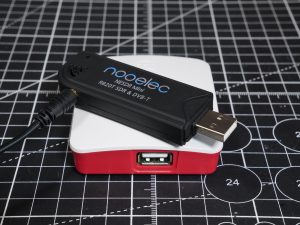

It uses a Raspberry Pi 3 Model A+, a Micro USB power supply, a microSD card (you may also need an SD card adapter), a USB ADS-B receiver dongle and a Raspberry Pi 3 Model A+ case (optional but recommended). Specifically, the maker used the NESDR Mini (TV28T v2) USB RTL-SDR, DVB-T & ADS-B Receiver Set).
The heart of the system, however, is the use of the Flightradar24 software.
Apparently, the Flightradar24 operating system image for Raspberry Pi includes a built-in web server. It enables you to host a small web page on your local network to display all the flight data collected. All accessible via your usual browser, of course.
“This tutorial will focus on the information transmitted by the transponders installed on aircraft flying overhead using Automatic Dependent Surveillance – Broadcast (ADS-B). These avionic systems provide information to identify aircraft, as well as their barometric altitude, to the Air Traffic Control (ATC) systems on the ground and to the Traffic Collision Avoidance Systems (TCAS) on other aircraft. Listening in to these signals provides a fascinating insight into a world we all take for granted.”
If you're reasonably handy with a Pi and the command line, it's not hard to set up. Tutorial here https://t.co/L2gbVLEqez
— Kate isn't really here any more (@katebevan) May 19, 2023
Full information is provided for the various steps involved, from initial setup and providing Wi-Fi credentials to setting up Flightradar24 and how to view aircraft tracking data…
You can read more information on the detailed description of the project on the tutorial section of the Raspberry Pi website.
After tracking the skies, you may want to track the seas…
“Building on this project might take you on a journey to more complex systems with better antennas, or perhaps a solar-powered receiving station. The sky’s the limit! Unless of course the sky isn’t your thing and you’re more interested in the sea, in which case you might want to look into receivers for Automatic Identification System (AIS) transponders capable of listening to position, identification, and other information about ocean-going vessels.”
SDR
It’s not the first such system we’ve covered here on Gadget Master. Back in 2017, we highlighted a Pi-based flight tracker system by DesignSpark blogger Andrew Back, who used SDR hardware to track aircraft hundreds of kilometres away….
Using Adafruit’s SDR USB stick and the PiTFT Plus 3.5 Raspberry Pi Touchscreen, plus a Raspberry Pi 3 Model B, he showed how you can build a low-cost plane watcher. It displays the tracking information from the Mode-S transponders of aircraft.
In the post, Andrew takes you through the full set up and provides details of the variety of software options available for receiving and decoding Mode-S transmissions for a more sophisticated display.
