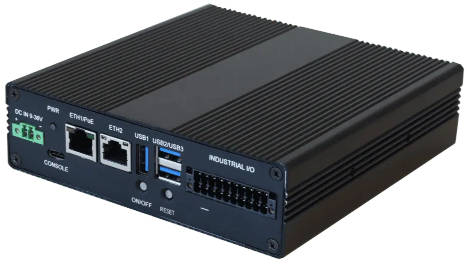

‘IIoT-200-8M Gateway’ is intended for industrial IoT and human-machine interface applications, and consists of a system-on-module with the processor, plugged into a carrier and interface board, all in an aluminium enclosure.
Supported interfaces include multiple 3x USB 3.0 type-A, 2x RS232, 2x RS485, 2x CAN-FD and 2x 1Gbit/s Ethernet – with Power over Ethernet (PoE) amongst the power options.
MIPI-DSI and LVDS are provided for displays, and wireless links are covered by Wi-Fi and Bluetooth, extended by M.2 slots for dual SIMs, and an AI accelerator or NVMe storage.
Board support packages for Yocto and Debian are available, along with drivers for TPM 2.0, RTC, Wi-Fi and Bluetooth Low Energy.
Operation is over -40 to 85°C, and the box measures 120 x 80 x 30mm without the DIN rail mounting option.
Find the computer on this web page.
