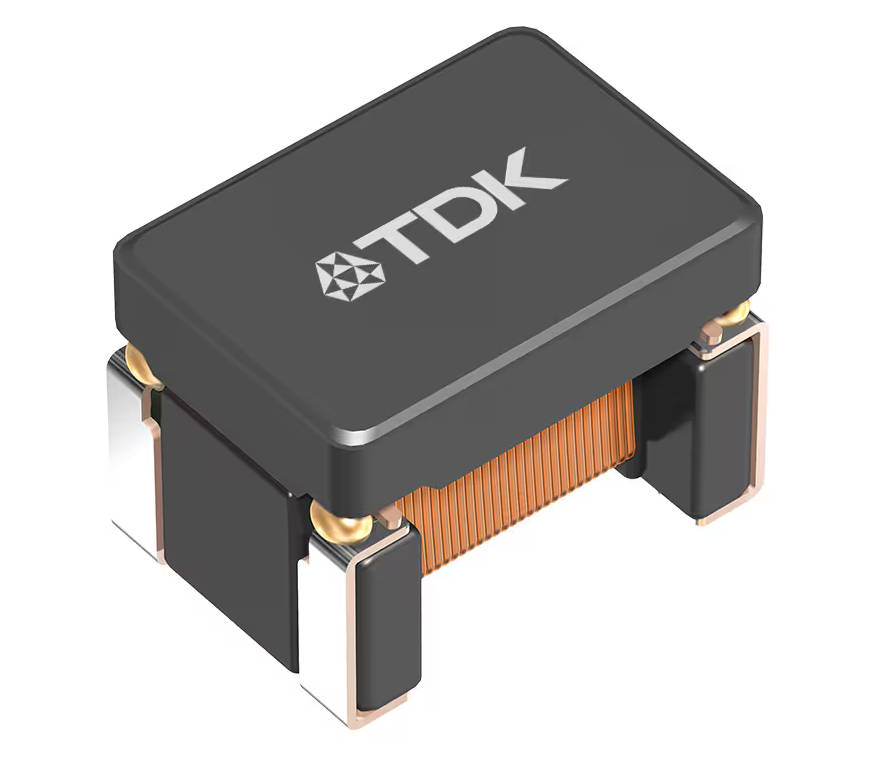

The three parts are an expansion of the 4.5 x 3.2 x 3.2mm ADL4532VK series, and are rated for use across -55 to +155°C.
Power-over-coax requires data to be separated from power, and that filtering is what these inductors are intended for.
The “series delivers high impedance across a frequency range from tens of megahertz to hundreds of megahertz”, according to the company.
| ADL4532VK suffix |
100kHz inductance (±20%) |
Max dc resistance |
25°C saturation (inductance drops 30%) |
Current at 105°C (50°C self-heating) |
Current at 125°C (30°C self-heating) |
|---|---|---|---|---|---|
| -3R0M-TL000 | 3μH | 125mΩ | 2.1A typ | 1.65A typ | 1.3A typ |
| -100M-TL000 | 10 | 235 | 1.25 | 1.2 | 0.94 |
| -160M-TL000 | 16 | 470 | 0.95 | 0.83 | 0.64 |
Use is foreseen with cameras
